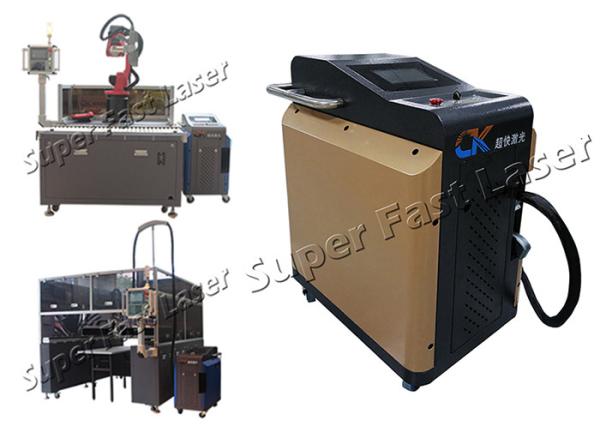

Laser Rust Cleaning Machine 300W Pulse Energy Fiber Laser Portable
Die-Casting Mold Cleaning Equipment
Technical parameters
| Electrical characteristics |
| No. | Characteristic | Test Conditions | Min | Typical value | Max | Unit |
| 1 | Supply voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total power consumption | 1440 | 1430 | 1440 | 1450 | W |
| 4 | Fiber optic cable | 5 | 5 | 5 | 8 | M |
| General characteristics |
| L/N | Characteristics | Parameters | Unit |
| 1 | Output Fiber cable | 5 | M |
| 2 | Average power output | 350±5 | W |
| 3 | Power adjust range | 1-100 | % |
| 4 | Max. Pulse energy | 15 | MJ |
| 5 | Pulse width | 80-500 | NS |
| 6 | Cooling method | Air-cooling | |
| 7 | Laser level | Level 4 | |
| 8 | Max. power consumption | 1440 | W |
| 9 | Center wavelength | 1064 | NM |
| 10 | Voltage | 220 | AC |
| 11 | Work temperature | 0-60 | ℃ |
| 12 | Lasser source dimension | 558*378.5*425 | MM |
| 13 | Machine dimension | 850*500*950 | MM |
| 14 | Machine weight | 133 | KG |
Machine advantages
1) Cleaning efficiency is very high, time-saving.
2) Simple operation, power can be hand-held or with the robot to
achieve automated cleaning.
3) Without any chemical cleaning fluid, no supplies, safety, and
environmental protection.
4) Precise cleaning, it can achieve a precise location, the exact
size of the selective cleaning.
5) Laser cleaning is non-contact cleaning, it does not hurt the
part substrate.
6) The laser cleaning system is stable, with almost no maintenance.
Product Application
1, Precision parts laser cleaning
2, Natural stone cleaning
3, Rust and oxide removal
4, Oil & grease removal, laser Cleaning oil deposits
5, Industrial, military & shipyard - production intensive
de-coating laser
6, Paint & plating removal by laser
7, Nuclear de-contamination laser cleaning
8, In-line baking plate cleaning
9, Print rollers cleaning
10, Pre-treatment to enhance adhesive bonding
11, Weld seam pre-treatment/Removal preparation welding layers,
welding bead laser cleaning
Machine Features
| 1. low cost; |
| 2. No need to sand grit or chemical; |
| 3. Low noise; |
| 4. There are no maintenance requirements. |
| 5. Accurate cleaning and paint removal effects; |
| 6. Fast investment recovery; |
| 7. The equipment does not need to be set up; |
| 8. Clean or remove the surface paint layer quickly and cleanly; |
| 3. no damage to the substrate; |
Mold cleaning
Every year, tire manufacturers around the world manufacture
hundreds of millions of tires. During the production process, the
cleaning of tire molds must be rapid and reliable to save downtime.
Traditional cleaning methods include sandblasting, ultrasonic or
carbon dioxide cleaning, etc., but these methods usually have to be
carried out after the hot mold is cooled for several hours, and
then moved to the cleaning equipment for cleaning. The time
required for cleaning is long, and the accuracy of the mold is
easily damaged, Chemical solvents and noise can also cause safety
and environmental issues.
The laser cleaning method is used because the laser can be
transmitted through the optical fiber, so it is very flexible in
use; because the laser cleaning method can be connected by the
optical fiber to guide the light to the dead corner of the mold or
the hard-to-clear part for cleaning, it is convenient to use;
because the rubber and No gasification, so no toxic gas will be
produced, affecting the safety of the working environment.
The technology of laser cleaning tire molds has been widely adopted
in the tire industry in Europe and America. Although the initial
investment cost is high, the benefits obtained in saving standby
time, avoiding mold damage, working safety, and saving raw
materials can be quickly recovered.
According to the cleaning test conducted by Jinan Gaoneng Qingyang
Laser Cleaning Co., Ltd.'s intelligent laser cleaning machine on
the production line of a tire company in Shandong, it took only 1.5
hours to clean a set of molds for large truck tires online.
Compared with conventional cleaning methods, the economic benefits
are obvious.
