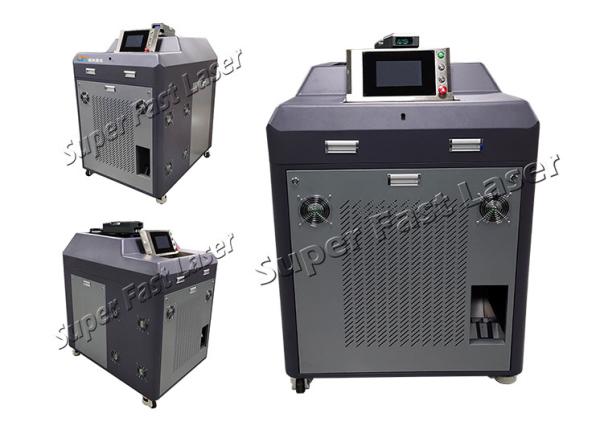

Industrial Molding Laser Cleaning Equipment No Consumables Laser
Rubber Molds Cleaner Machine
Technical parameters
| Items | Parameters |
| Cleaning Power | 50W | 100W | 200W | 500W |
| Current Consumption | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 25A |
| Max. Power | 400W | 600W | 900W | 6.5KW |
| Power Voltage | AC 110/220V | AC 110/220V | AC 110/220V | AC 110/220V |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling | Water Cooling |
| Laser Class | Level 4 | Level 4 | Level 4 | Level 4 |
| Pulse Energy | 1.5mJ | 1.5mJ | 8mJ | 30mJ |
| Fiber Optical Cable | 5m(Customizable) | 5m(Customizable) | 5m(Customizable) | 7m(Customizable) |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Scan Width | 1-120mm | 1-120mm | 1-120mm | 1-160mm |
| Preheat Time | 10-30s | 10-30s | 10-30s | 10-30s |
| Working Condition | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact |
| Working Temperature | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ |
| Storage Temperature | -10~+60℃ | -10~+60℃ | -10~+60℃ | -10~+60℃ |
| Machine size | L462 x W 260 x H562 (855mm with pull rod) | L647 x W 440 x H859mm | L647 x W 440 x H859mm | L1100 x W 840 x H1150mm |
| Net Weight | 32Kgs | 70Kgs | 70Kgs | 250Kgs |
Advantages of laser cleaning the moldings
Compared with traditional cleaning methods such as Chemical mold
cleaning liquid or sandblasting, laser cleaning has huge
advantages:
1) Only use electricity, without any other consumables,
energy-saving, and cost-saving.
2) Low noise, no chemical pollution, environmental protection,
avoid environmental troubles;
3) Laser non-contact cleaning, no damage to the mold base material,
knife edges, ridges, and prolongs the life of the molds;
4) Retain the electroplated layer, no damage to the product finish;
5) Efficient and thorough cleaning to improve productivity and
product quality;
6) Automatic cleaning, labor cost saving;
7) No temperature effects, both cold and hot molds can be cleaned;
8) Flexible cleaning methods, hand-held cleaning, automatic
cleaning optional;
9) No cleaning dead end, no shape limitation, where the laser can
reach can be cleaned
Product Application:
| - Precise de coating of small areas |
| - Natural stone cleaning |
| - Rust/oxide removal |
| - Oil & grease removal/Cleaning oil deposits |
| - Paint & plating removal |
| - Pre-treatment to enhance adhesive bonding |
| - In-line baking plate cleaning |
| - Print rollers cleaning |
| - Weld seam pre-treatment/Removal preparation welding layers |
| - Industrial, military & shipyard - production intensive de-coating |
| - Nuclear de-contamination |
Features
1. The fast speed at low cost.
2. It can protect the surface of the cleaning object, and make sure
that it is intact. For different dirt on different substrate
surfaces, the fiber laser cleaning machine can selectively clean
the dirt without damaging the substrate by setting laser parameters
such as spot size, single pulse energy, pulse width, repetition
rate, etc.
3. It can clean the surface of the fragile material. Since laser
cleaning is non-contact between the machine and the object, it is
convenient to carry out the cleaning operation. And very easy to
clean up the area in which other conventional cleaning methods
cannot be reached.
4. It’s environmentally friendly and green cleaning.
After-sales Service
1) 2 years quality warranty.
2) Lifetime maintenance free of charge.
3) Free training course for any application.
4) 24 hours of online service, free technical support.
5) The machine has been strictly tested and inspected before
delivery.
6) Door to door technical services(We have professional engineers
to offer machine installation
7)We can change a new machine if there is quality problem that is
not easy to be solved.
