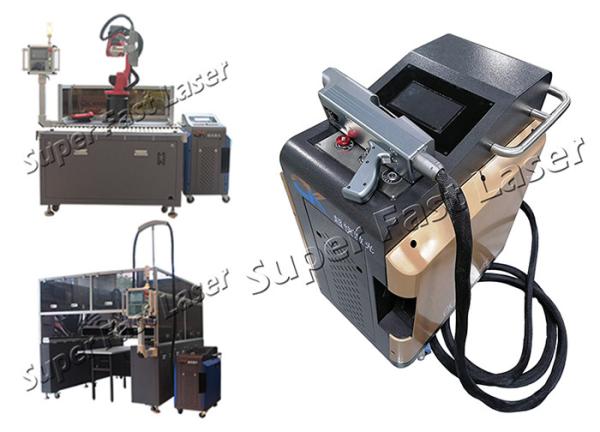

1064nm Wave Length Fiber Laser Rust Remover Machine Portable With
CE and ISO Certificate
Technical parameters
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total Power | 900 | 890 | 900 | 910 | W |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ |
| 2 | Storage temperature | -10 | / | 60 | ℃ |
| 3 | Laser power | 200 | W |
| 4 | Peak power | >30KW | KW |
| 5 | Cooling method | Air Cooling | |
| 6 | Laser level | 4 Class | |
| 7 | Pulse energy | 10mJ | mJ |
| 8 | Laser wavelength | 1064 | nm |
| 9 | Preheat time | Reach to start operation | 0 | s |
| Achieve complete stability | 10 |
| 10 | Humidity | 10 | / | 95 | % |
| 11 | Laser machine size | L647*W440*H859 | mm |
| 12 | Weight | 70 | kg |
How does the process work?
While there are many different types of laser, they generally work
in the same way when it comes to cleaning, although output power,
pulse parameters, and wavelength can change dramatically. The laser
cleaning process works by having a laser pulse directed at the
surface of a material, which blasts this
layer off. The contaminants that you are trying to remove are
mostly vaporised, leaving very little waste material behind. Any
waste that is left is in the form of particle dust, and it’s a
simple process to suction this away. By adjusting the laser output
energy, you can remove virtually anything from a surface including
non-organic materials. By controlling the energy levels, various
surface contaminants cam be removed (e.g. organics, mineral oxides
or ceramics) with no damage to the underlying substrate. It is also
a non-contact, and non-abrasive process
Machine applications
| 1. Metal or glass surface coating removal, rapid removal of paint |
| 2. Quick rust removal and various oxides |
| 3. Remove grease, resin, gum, dust, stains, and produce residue |
| 4. Roughening of metal surface |
| 5. Before welding or bonding, remove paint, rust, grease, weld
oxide, residue treatment |
| 6. Mold cleaning, such as tire mold, electronic mold, food mold |
| 7. After the production of precision parts, oil removal |
| 8. Quick cleaning of nuclear power unit maintenance |
| 9. Aerospace weapons, processes for the manufacture or maintenance
of ships, removal of paint, rust removal |
| 10. Metal surface cleaning in narrow space |
| 11. Cultural relics cleaning, rock cleaning, exterior cleaning of
buildings. |
Main features
1) High Cleaning efficiency, time-saving.
2) Simple operation, power can be hand-held or with the robot to
achieve automated cleaning.
3) Without any chemical cleaning fluid, no supplies, safety, and
environmental protection.
4) Precise cleaning, it can achieve a precise location, the exact
size of the selective cleaning.
5) Laser cleaning is non-contact cleaning, it does not hurt the
part substrate.
6) The laser cleaning system is stable, with almost no maintenance.
