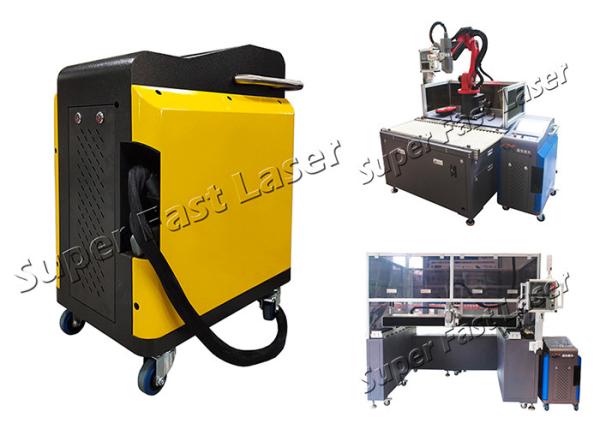

Mirror Surface Stainless Steel Laser Cleaning Machine Welding Seam
Laser Cleaner
The laser cleaning machine is easy to clean rust, paint, and oil.
Easy to operate, turn on the power, run the device, then you can
begin no chemical reagents, no contact, no media, dust-free,
anhydrous cleaning, autofocus, fit surface cleaning, cleaning the
surface cleanliness advantages, to clear the surface resin, Oil,
dirt, dirt, rust, coating, coating, paint.
Product Datasheet
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total Power | 600 | 590 | 600 | 610 | W |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ |
| 2 | Storage temperature | -10 | / | 60 | ℃ |
| 3 | Laser power | 100 | W |
| 4 | Peak power | >10KW | KW |
| 5 | Cooling method | Air Cooling | |
| 6 | Laser level | 4 Class | |
| 7 | Pulse energy | 1.5mJ | mJ |
| 8 | Laser wavelength | 1064 | nm |
| 9 | Preheat time | Reach to start operation | 0 | s |
| Achieve complete stability | 10 |
| 10 | Humidity | 10 | / | 95 | % |
| 11 | Laser machine size | L647*W440*H859 | mm |
| 12 | Weight | 70 | kg |
Typical Features
| 1) Powerful, short pulses, fast-moving laser pulses act on the
surface of the target, producing tiny plasma ruptures, shock waves,
thermal stress, etc., causing surface materials to sublimate and
evaporate. |
| 2) The focused laser beam is capable of accurately evaporating
surface objects or dirt. |
| 3) Laser cleaning is suitable for metal surfaces. The treated and
optimized laser beam does not alter metal properties or damage
those laser-treated surfaces. The precisely tuned laser beam acts
only on the coating, residual residue or oxide, and does not harm
the underlying parent metal surface. |
| 4) By adjusting other parameters, the laser beam is able to achieve
the desired cleaning effect accurately and easily. |
Product Applications
| - Precise de coating of small areas |
| - Natural stone cleaning |
| - Rust/oxide removal |
| - Oil & grease removal/Cleaning oil deposits |
| - Paint & plating removal |
| - Pre-treatment to enhance adhesive bonding |
| - In-line baking plate cleaning |
| - Print rollers cleaning |
| - Weld seam pre-treatment/Removal preparation welding layers |
| - Industrial, military & shipyard - production intensive de-coating |
| - Nuclear de-contamination |
How does a fiber laser work?
Just as there is more than one type of cleaning process, there is
also more than one type of laser process too. The three main types
of laser are; crystal, gas, and fiber. Here at SPI Lasers, we only
manufacture fiber lasers, and this type offers additional benefits
over the other types of laser medium.
How does a fiber laser work? An optical fiber, which has been doped
with the rare earth element of Erbium, acts as the beam source,
this is able to achieve a high power, high-quality laser beam, but
cost-effectively too.
Within this fiber is the laser medium, where the erbium atoms are
contained. The photons that are emitted, to create the beam, are
also within this fiber core. In this core, you’ll find a highly
effective refracting system, called a Bragg Grating. The laser
medium, Bragg Grating and pump source combined help to produce a
high quality and stable laser beam.
Why is this better than using other types of laser?
There are many reasons that fiber lasers have quickly gained
popularity over other types of laser. The fiber laser beam is
generated inside the fiber itself, and so the beam produced is
extremely stable. Other laser sources, on the other hand, rely on a
fine alignment of mirrors, and should these be knocked, it can be
hard to realign them.
The stable beam that is produced is also of an extremely high
quality too. It’s straight, it can be highly accurate to a small
degree, and it offers a high level of power too.
Finally, they are an efficient source too. They are easy to cool,
have a much longer service life than other types of laser, and our
‘Fit & Forget’ technology means they’ll never need any maintenance
either.
Laser an acronym for light amplification by stimulated emission of
radiation; an optical device that produces an intense monochromatic
beam of coherent light More (Definitions, Synonyms, Translation)
