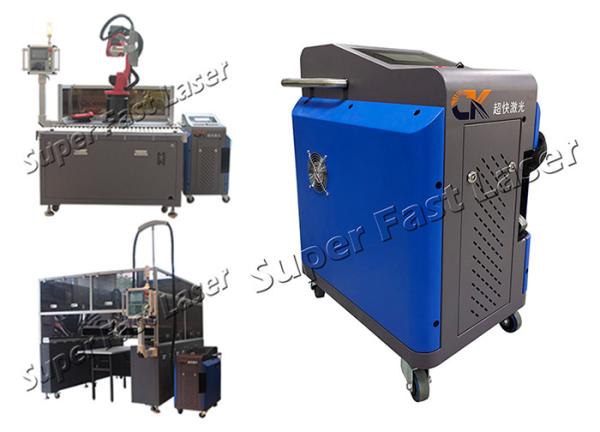

Touch Screen High Speed Descaling Machine With Laser Power 100W
Cleaning Machine Laser
Super Fast Lasers are dedicated and professional in the laser
cleaning industry. The perfect product marketing system and 24
hours prompt response after-sales service system make us more
competitive. The company has established strategic cooperation
alliances with world-class laser suppliers, such as and IPG of
Germany, combining world-leading lasers with domestic top-level
integration technologies and providing vertical and comprehensive
laser solutions for domestic and foreign customers!
Product parameters
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total Power | 600 | 590 | 600 | 610 | W |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ |
| 2 | Storage temperature | -10 | / | 60 | ℃ |
| 3 | Laser power | 100 | W |
| 4 | Peak power | >10KW | KW |
| 5 | Cooling method | Air Cooling | |
| 6 | Laser level | 4 Class | |
| 7 | Pulse energy | 1.5mJ | mJ |
| 8 | Laser wavelength | 1064 | nm |
| 9 | Preheat time | Reach to start operation | 0 | s |
| Achieve complete stability | 10 |
| 10 | Humidity | 10 | / | 95 | % |
| 11 | Laser machine size | L647*W440*H859 | mm |
| 12 | Weight | 70 | kg |
Product Application
A Rust/oxide removal
B Natural stone cleaning
C Precise de coating of small areas
D Nuclear de-contamination
E Paint & plating removal
F Oil & grease removal/cleaning Oil deposits
G In-line baking plate cleaning
H Industrial, military & shipyard - production intensive de-coating
I Weld seam Pre-treatment/removal preparation welding layers
J Print rollers cleaning
K Pre-treatment to enhance adhesive bonding
Technical advantages
• Cleaning with chemical solvents – A high amount of waste is
created that needs to be disposed of safely. This waste consists of
hazardous solvents that have been mixed with residue, and the
vapours released can be dangerous to humans, hence the operator
requires protection
• Cleaning using media blasting – Highly abrasive to substrates,
and so can’t be used on delicate surfaces. It also produces a high
level of waste in the form of blasting media such as sand or
plastic, that also needs to be disposed of
• Cleaning using dry-ice blasting – Not efficient at cleaning
delicate surfaces, and a noisy process. Also, potentially hazardous
to
1. Clean or remove the surface paint layer quickly and cleanly;
2. Accurate cleaning and paint removal effects;
3. no damage to the substrate;
4. low cost;
5. Fast investment recovery;
6. No need to sand grit or chemical;
7. The equipment does not need to be set up;
8. Low noise;
9. There are no maintenance requirements.
