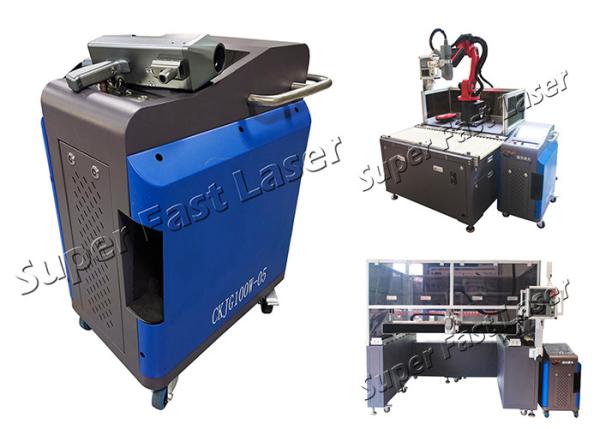

Laser Descaling Machine Automatic 100W Auto-focusing Laser Cleaner
200W Optional
Mechanical Arm Laser Cleaning Machine
Super-high precision automatic cleaning procedure, free-manual
operation. It is especially suitable For the large quantity of mass
production. It can highly increase production efficiency and reduce
production costs.
| Items | Parameters |
| Cleaning Power | 50W | 100W | 200W | 500W |
| Current Consumption | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 25A |
| Max. Power | 400W | 600W | 900W | 6.5KW |
| Power Voltage | AC 110/220V | AC 110/220V | AC 110/220V | AC 110/220V |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling | Water Cooling |
| Laser Class | Level 4 | Level 4 | Level 4 | Level 4 |
| Pulse Energy | 1.5mJ | 1.5mJ | 8mJ | 30mJ |
| Fiber Optical Cable | 5m(Customizable) | 5m(Customizable) | 5m(Customizable) | 7m(Customizable) |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Scan Width | 1-120mm | 1-120mm | 1-120mm | 1-160mm |
| Preheat Time | 10-30s | 10-30s | 10-30s | 10-30s |
| Working Condition | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact |
| Working Temperature | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ |
| Storage Temperature | -10~+60℃ | -10~+60℃ | -10~+60℃ | -10~+60℃ |
| Machine size | L462 x W 260 x H562 (855mm with pull rod) | L647 x W 440 x H859mm | L647 x W 440 x H859mm | L1100 x W 840 x H1150mm |
| Net Weight | 32Kgs | 70Kgs | 70Kgs | 250Kgs |
Machine advantages
1) High laser cleaning efficiency, time-saving.
2) Easy operation, power can be hand-held or with the robot to
achieve automated cleaning.
3) No chemical cleaning fluid, no supplies, safety, and
environmental protection.
4) Precise laser cleaning, it can achieve a precise location, the
exact size of the selective cleaning.
5) Laser cleaning is non-contact cleaning, no hurt to the part
substrate.
6) Stable system, free maintenance.
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator.
Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
How to operate the machine
1) Turn on the air switch to up location.
2) Rotate the key to turn on the power supply to the machine.
3) Choose Language "English" on the screen(Language customizable)
4) Then press the Parameter settings button to set the cleaning
parameters.
5) Choose the laser shape: Square, Helix, Ring.
a, If you choose to use square and helix shape, just press the
"square" or "helix" button, and
then the button will turn to a light green color.
b, The field lens is 254, you do not need to change it.
The Galva speed can be adjusted between 1-30. Normally between
10-25 for square and helix shape.
If you choose ring shape, the speed is between 10-20(No higher than
20, or the laser will in mull).
c, Laser frequency: If you want the power stronger, just set it at
100-300K around.
If you want the power weaker, just increase the amount from
800-2000K.
d, Laser power: it is the ratio of the power of the laser. If 100%,
it is on full power.
e, Laser pulse width: 1-30 for precision cleaning, 80-120 for high
power cleaning.
f, Graphic length: it can be adjusted between 10-120mm. It is the
length of the laser beam.
g, Graphic width: We can say it is the width/or diameter of the
laser line.
If you need a laser line: just make it as 0 or 1.
If you want to make the laser move as a square: just set it at
10-50.
h, Filling pitch, it is the density of the laser. the smaller the
higher density is.
i, The delay: do not edit them.
j, If you choose ring shape, you do not need to set the width and
length. Just leave them there.
Other settings are the same, only need to set the outer
circle(1-10) and inner radius(0-9).
Just make sure the inner circle is smaller than the outer one.
6)After the parameters are set, press save to save the data, you do
not need to set next time.
7) If you need to preview it, you can press red light. Normally it
used for an automatic systems.
8) Considering the safety matters, we made 3 buttons to activate
the laser.
After the parameters are set ready:
a, Press the start button on the machine.
b, Press the laser button on the screen, it will turn to red color
once the button is on.
c, Press the button on the laser gun. Then the machine will work.
d, The focusing distance is about 250mm. Please move the laser gun
forward and backward(or up
and down) to find the focusing distance.
9) If you need to stop working.
a, Turn off the button on the laser gun first.
b, Then turn off the button on the screen and machine.
c, Rotate the key to off the power supply.
d, Unplug the power plug.
