| Brand Name : | CK (Super Fast) |
| Model Number : | CK-FC-60W |
| Certification : | CE, ISO |
| Price : | 8200USD-12000USD |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 200sets/moth |
| Delivery Time : | 5-7 days |

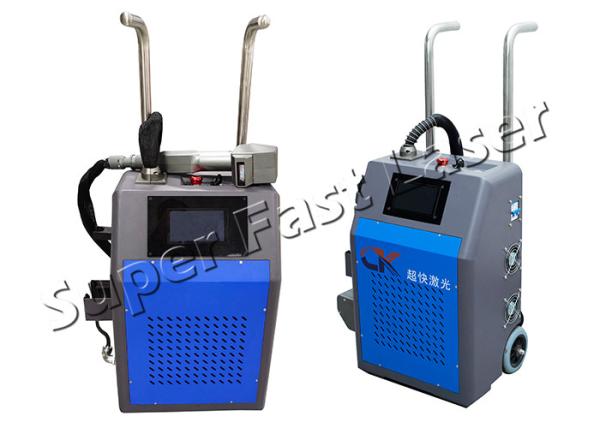

Portable 60W Laser Cleaner Machine JPT Laser Source Rust Remover Machine Easy Operation
Product Parameters
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A | |
| 3 | Total Power | 420 | 410 | 420 | 430 | W | |
| 4 | Fiber Cable | 5 | 5 | 5 | 8 | M | |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ | |
| 2 | Storage temperature | -10 | / | 60 | ℃ | ||
| 3 | Laser power | 60 | W | ||||
| 4 | Peak power | >10KW | KW | ||||
| 5 | Cooling method | Air Cooling | |||||
| 6 | Laser level | 4 Class | |||||
| 7 | Pulse energy | 1.5mJ | mJ | ||||
| 8 | Laser wavelength | 1064 | nm | ||||
| 9 | Preheat time | Reach to start operation | 0 | s | |||
| Achieve complete stability | 10 | ||||||
| 10 | Humidity | 10 | / | 95 | % | ||
| 11 | Laser machine size | L462*W260*H562 (855mm with pull rod) | mm | ||||
| 12 | Weight | 32 | kg | ||||
Super Fast Laser customized automatic, semi-automatic, 3D visual imagine and robot intelligent laser cleaning equipment can realize the automatic focus, high precision cleaning procedure, free-manual operation. It is especially suitable for large quantity mass production. It can highly increase production efficiency and reduce production costs.
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to the base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, a higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on the machine. But no consumable, low maintenance cost | Low investment on the machine. But expensive consumables | Medium investment on the machine. High man-power cost. | Medium investment on the machine. High consumable cost. |
Applications
| 1, Laser metal surface rust removal |
| 2, Paint cleaning |
| 3, Oil stain, contaminant laser cleaning |
| 4, Surface coating cleaning |
| 5, Welding/Coating surface pre-treatment and after-treatment. |
| 6, Stone figure surface dust & attachment cleaning. |
| 7, Plastic molding residues cleaning |
|
