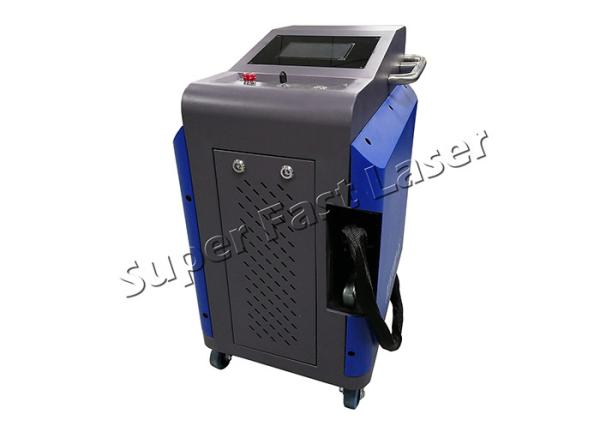

JPT Laser Source 100W Cleaning Machine Laser Rust remover Tool
Laser Paint Cleaner
Product Specification Table
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total Power | 600 | 590 | 600 | 610 | W |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ |
| 2 | Storage temperature | -10 | / | 60 | ℃ |
| 3 | Laser power | 100 | W |
| 4 | Peak power | >10KW | KW |
| 5 | Cooling method | Air Cooling | |
| 6 | Laser level | 4 Class | |
| 7 | Pulse energy | 1.5mJ | mJ |
| 8 | Laser wavelength | 1064 | nm |
| 9 | Preheat time | Reach to start operation | 0 | s |
| Achieve complete stability | 10 |
| 10 | Humidity | 10 | / | 95 | % |
| 11 | Laser machine size | L647*W440*H859 | mm |
| 12 | Weight | 70 | kg |
Product applications
a, Metal surface laser rust removal
b, Paint laser cleaning
c, Oil stain, contaminant cleaning
d, Coating surface cleaning by laser
e, Welding/Coating surface pre-treatment.
F, Stone figure surface dust & attachment cleaning.
G, Rubber mold residues laser remove
Metal is perhaps the most important material in the world, used in
dozens of industries and sectors. It is a core material in many
manufacturing processes and finds itself featured in millions of
items that we use each and every day.
From the aerospace to the automotive industry, a vast array of
different types of metal are used in the completion of parts and
finished goods. Therefore, using processes that can work with
metals safely, efficiently, cost-effectively and in an
environmentally friendly manner is extremely important. One such
process is laser cleaning, and we have looked at the specific
applications of this process on metal below.
Product Features
1. Fast cleaning speed but low cost.
2. No damage to the cleaning object. For different dirt on
different substrate surfaces, the fiber laser cleaning machine can
selectively clean the dirt without damaging the substrate by
setting laser parameters such as spot size, single pulse energy,
pulse width, repetition rate, etc.
3. It can clean the surface of the fragile material. Since laser
cleaning is non-contact between the machine and the object, it is
convenient to carry out the cleaning operation. And very easy to
clean up the area in which other conventional cleaning methods
cannot be reached.
4. It’s environmentally friendly and green cleaning.
5, No consumables, only need to use the electriicity.
