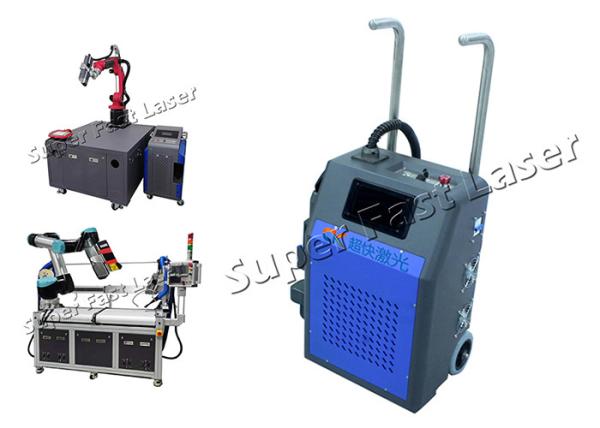

    Intelligent Automatic Laser Cleaning Equipment Laser Robot Grease Removal System

    Ask Lasest Price
    Brand Name : Super Fast - CK
    Model Number : CK-FC-50W
    Certification : CE, ISO
    Price : 8600USD-12000USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200sets/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Intelligent Automatic Laser Cleaning Equipment Laser Robot Grease Removal System


    Intelligent Automatic Laser Cleaning Equipment Laser Robot Grease Removal System


    Features
    1. The fast speed at low cost.
    2. It can protect the surface of the cleaning object, and make sure that it is intact. For different dirt on different substrate surfaces, the fiber laser cleaning machine can selectively clean the dirt without damaging the substrate by setting laser parameters such as spot size, single pulse energy, pulse width, repetition rate, etc.
    3. It can clean the surface of the fragile material. Since laser cleaning is non-contact between the machine and the object, it is convenient to carry out the cleaning operation. And very easy to clean up the area in which other conventional cleaning methods cannot be reached.
    4. It’s environmentally friendly and green cleaning.


    Product parameters

    ItemsParameters
    Cleaning Power50W
    Current ConsumptionPout = Ponm / 5A
    Max. Power400W
    Power VoltageAC 110/220V
    Cooling MethodAir Cooling
    Laser ClassLevel 4
    Pulse Energy1.5mJ
    Fiber Optical Cable5m(Customizable)
    Laser Wavelength1064nm
    Scan Width1-120mm
    Preheat Time10-30s
    Working ConditionA flat place without vibration and impact
    Working Temperature0-60 ℃
    Storage Temperature-10~+60℃
    Machine sizeL462 x W 260 x H562 (855mm with pull rod)
    Net Weight32Kgs

    The non-contact laser cleaning machine R&D by Super Fast is the new high-tech product. It does not hurt the base material, no consumables, energy-saving, and environmental protection. The resin, oil, stains, dirt, rust, coating, plating, paint on the workpiece surface can be removed with high efficiency. This meets the requirements of complex modeling and precision production cleaning in the industrial processing field achieves a higher level cleaning effect and lower production cost.

    The machine mainly used for the automotive industry, machining, electronic processing, cultural relics, mold industry, shipbuilding, food processing, petrochemical, and other industries.

    1) No damage to the base of the material due to the no-touch surface cleaning performance
    2) Precise cleaning technic for the specific area in a selected area
    3) No need for chemistry or other added supplies
    4) Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm
    5) Small cleaning time consumption and comes with a high-quality finishing result
    6) Stable and impacted integrated design which results in no extra maintenance

    Base MaterialSurface ConditionEffective focus depth(mm)Standard cleaning efficiency (mm/min)High-speed cleaning efficiency(mm/min)Cleaning effect
    Cast ironHeavy rust (0.08mm thickness)>3520003000Clean surface, no damage to the base metal
    Carbon steelModerate corrosion (0.05mm thickness)>4020002500Clean surface, no damage to the base metal
    Stainless steelSurface oil, slightly rust>5020002800Clean surface, no damage to the base metal
    Mold steel gearModerate oil stain, attached iron filings>4030003200Clean surface, no damage to the base metal
    Aluminum plateOxide/surface contamination>3525003000Clean surface, no damage to the base metal
    No putty paint layerWhite pigmented paint (0.1mm thickness)>2018002000Clean surface, no damage to the base metal
