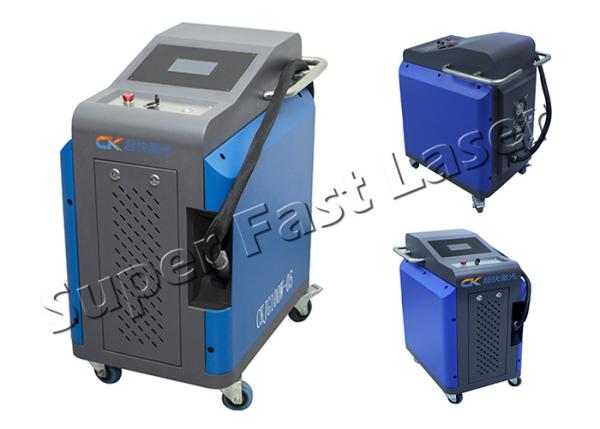

    Industrial Laser Cleaning Machine

    Ask Lasest Price
    Brand Name : CK Super fast
    Model Number : CK-FC-100W
    Certification : CE, ISO
    Price : 20000-26000USD/SET
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Industrial Laser Cleaning Machine


    Industrial Laser Cleaning Machine


    Machine Features
    (1) Non-contact cleaning, no damage to the workpiece.
    (2) First fiber laser cleaning machine mass production factory.
    (3) High cleaning efficiency, time-saving.
    (4) Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
    (5) No chemical detergent, no consumable. safe & environment-friendly.
    (6) Stable laser cleaning system, free maintenance.
    (7) Easy to operate, Either portable or equipped with a robot for automatic cleaning.

    (8) Low power consumption, energy-saving.

    (9) Environment protection, the best machine to replace the traditional cleaning method.

    (10) Handheld operation mode and automatic operation mode optional. All series of automatic laser cleaning equipment can be customized.


    Specification List

    Items

    Parameters

    Cleaning Power

    50W

    100W

    200W

    500W

    Current Consumption

    Pout = Ponm / 5A

    Pout = Ponm / 5A

    Pout = Ponm / 5A

    Pout = Ponm / 25A

    Max. Power

    400W

    600W

    900W

    6.5KW

    Power Voltage

    AC 110/220V

    AC 110/220V

    AC 110/220V

    AC 110/220V

    Cooling Method

    Air Cooling

    Air Cooling

    Air Cooling

    Water Cooling

    Laser Class

    Level 4

    Level 4

    Level 4

    Level 4

    Pulse Energy

    1mJ

    1.5mJ

    8mJ

    30mJ

    Fiber Optical Cable

    5m(Customizable)

    5m(Customizable)

    5m(Customizable)

    7m(Customizable)

    Laser Wavelength

    1064nm

    1064nm

    1064nm

    1064nm

    Scan Width

    1-120mm

    1-120mm

    1-120mm

    1-160mm

    Preheat Time

    10-30s

    10-30s

    10-30s

    10-30s

    Working Condition

    A flat place without vibration and impact

    A flat place without vibration and impact

    A flat place without vibration and impact

    A flat place without vibration and impact

    Working Temperature

    0-60 ℃

    0-60 ℃

    0-60 ℃

    0-60 ℃

    Storage Temperature

    -10~+60℃

    -10~+60℃

    -10~+60℃

    -10~+60℃

    Machine size

    L462 x W 260 x H562 (855mm with pull rod)

    L647 x W 440 x H859mm

    L647 x W 440 x H859mm

    L1100 x W 840 x H1150mm

    Net Weight

    32Kgs

    70Kgs

    70Kgs

    250Kgs


    Apply to

    1.Metal surface rust removal

    2.Paint cleaning

    3.Oil stain, contaminant cleaning

    4.Coating surface cleaning

    5.Welding/Coating surface pre-treatment

    6.Stone figure surface dust & attachment cleaning

    7. Plastic mold residues cleaning

    Industries

    1.Mould

    2.High-end machine tools

    3.Ship

    4.Vehicle parts

    5.Rubber tire

    6.Environmental protection industry

    7.Printing Industry

    8.Road track

    9.Microelectronics

    What is laser cleaning?

    Laser cleaning, which you may also see being referred to as laser surface cleaning, has become an important and crucial process for many industries around the world. This is by no means the only type of cleaning process, and there have been many other types of cleaning methods that have come before.But laser cleaning was introduced to the market to solve some of the problems that these other processes presented and to offer a new set of advantages to their users.

    Laser cleaning is a process whereby contaminants or impurities, such as carbon or rubber, are removed from a material’s surface through the use of laser irradiation. The purpose of this is to literally clean the material that is being worked with.

    Application Field

    A Metal surface cleaning

    B Removal paint of metal surface

    C stains cleaning on the surface

    D Surface coating cleaning

    E Pre-treatment of welding surface cleaning

    F Stone surface cleaning

    G Rubber mold residue cleaning



    Will laser cleaning damage my material?

    The laser beam will leave no chemical, mechanical or thermal strain on the substrate itself. This means you can safely pulse the surface layer of your material.

    Furthermore, as laser systems, particularly fiber lasers, offer the user a great deal of control, the depth at which you want to work at can be highly accurate. This is useful for applications where you may only want to remove a very thin layer, such as a topcoat of paint and not the primer below.


    What industries is the laser cleaning machine used in?

    Given the range of applications that the process is used for, it is utilized by many industries, such as:

    · The solar industry for de-coating solar panels

    · The aerospace industry for removing paint and traffic film from flights

    · The automotive, manufacturing and ship-building industries for preparation treatment

    · The food industry, where laser cleaning is used on something like baking trays


    · The railway industry, to clean the railway guide before welding and other maintenance.
