    High Stability Laser Cleaning System Light Weight For Automatic Car Parts

    Ask Lasest Price
    Brand Name : Super Fast - CK
    Model Number : CK-FC-AUTO
    Certification : CE, ISO
    Price : 30000-100000USD
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 sets / month
    Delivery Time : 30-45 days for customized equipment
    • Product Details
    • Company Profile

    High Stability Laser Cleaning System Light Weight For Automatic Car Parts


    High Stability Laser Cleaning System Light Weight For Automatic Car Parts


    Intelligent Automatic Laser Cleaning Equipment

    The non-contact laser cleaning machine R&D by Super Fast is the new high-tech product. It does not hurt the base material, no consumables, energy-saving, and environmental protection. The resin, oil, stains, dirt, rust, coating, plating, paint on the workpiece surface can be removed with high efficiency. This meets the requirements of complex modeling and precision production cleaning in the industrial processing field, achieves a higher level cleaning effect and lower production cost.

    The machine mainly used for the automotive industry, machining, electronic processing, cultural relics, mold industry, shipbuilding, food processing, petrochemical, and other industries.

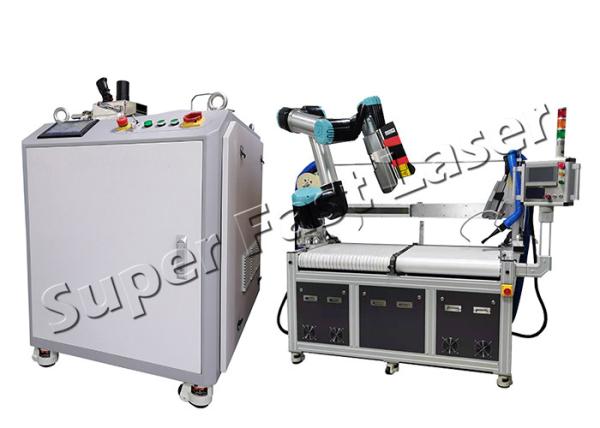

    Mechanical Arm Laser Cleaning Machine
    Super-high precision automatic cleaning procedure, free-manual operation. It is especially suitable For the large quantity of mass production. It can highly increase production efficiency and reduce production costs.

    ItemsParameters
    Cleaning Power50W100W200W500W
    Current ConsumptionPout = Ponm / 5APout = Ponm / 5APout = Ponm / 5APout = Ponm / 25A
    Max. Power200W480W800W6.5KW
    Power VoltageAC 110/220VAC 110/220VAC 110/220VAC 110/220V
    Cooling MethodAir CoolingAir CoolingAir CoolingWater Cooling
    Laser ClassLevel 4Level 4Level 4Level 4
    Pulse Energy1.5mJ1.5mJ8mJ30mJ
    Fiber Optical Cable5m(Customizable)5m(Customizable)5m(Customizable)7m(Customizable)
    Laser Wavelength1064nm1064nm1064nm1064nm
    Scan Width1-120mm1-120mm1-120mm1-160mm
    Preheat Time10-30s10-30s10-30s10-30s
    Working ConditionA flat place without vibration and impactA flat place without vibration and impactA flat place without vibration and impactA flat place without vibration and impact
    Working Temperature0-60 ℃0-60 ℃0-60 ℃0-60 ℃
    Storage Temperature-10~+60℃-10~+60℃-10~+60℃-10~+60℃
    Machine sizeL462 x W 260 x H562 (855mm with pull rod)L647 x W 440 x H859mmL647 x W 440 x H859mmL1100 x W 840 x H1150mm
    Net Weight32Kgs70Kgs70Kgs250Kgs

    Laser Classification

    This equipment is divided into high power Class IV laser equipment. This product emits light with a wavelength of around 1060 nm up to 100W. This level of light can cause damage to the eyes and skin. This emitted light is invisible and the beam may cause irreparable damage to the cornea. Laser goggles are not included with this product, but goggles must always be worn while the laser is in operation.

    Product performance table---Non-handheld standard cleaning data
    Base MaterialSurface ConditionEffective focus depth(mm)Standard cleaning efficiency (mm/min)High-speed cleaning efficiency(mm/min)Cleaning effect
    Cast ironHeavy rust (0.08mm thickness)>3520003000Clean surface, no damage to the base metal
    Carbon steelModerate corrosion (0.05mm thickness)>4020002500Clean surface, no damage to the base metal
    Stainless steelSurface oil, slightly rust>5020002800Clean surface, no damage to the base metal
    Mold steel gearModerate oil stain, attached iron filings>4030003200Clean surface, no damage to the base metal
    Aluminum plateOxide/surface contamination>3525003000Clean surface, no damage to the base metal
    No putty paint layerWhite pigmented paint (0.1mm thickness)>2018002000Clean surface, no damage to the base metal

    FAQ
    Q1: How can I get the best machine for me?
    Contact me,we will suggest you the best machine for your application.
    Q2: I never use this kind of machine before, is it easy to operate?
    Yes, it's extremely easy! Inno will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by remote service. Or we can talk by phone, email or other contact ways.
    Q3: If the machine has problem in my place, how could I do?
    Call me, we will handle your problems and transfer to related person. We could send free parts to you in warranty period if machines have any problem under "normal use".
    Q4: This model is not suitable for me, do you have more models available?
    Yes, just contact me, he will show you the suitable machine according to your information.
    Q5: What's the guarantee, in case the machine breaks down?
    The machine has two years guarantee.
    Q6: How about the documents after shipment?
    After shipment,i will send all original documents to you, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
    Q7: How long is the delivery time?
    For standard machines, it would be 5-7 days; For customized machines, negotiable.
    Q8: How's the payment?
    Telegraphic Transfer (T/T). Special payment term according to your country policy is accepted.
